Snow Blades, Buckets and Blowers
A snow blade and bucket attachment can be used for snow removal on articulated wheel loaders. A snow blade, also known as a snow plow blade, pushes snow to the side to clear a surface. A snow bucket can lift and carry large amounts of snow, and can also be used to load snow into a truck, remove snow from a site, or load salt or sand.
Snow blades offer a replaceable bolt-on wear edge and optional rubber edge. It is made of reinforced seven-gauge steel with a spring-loaded trip mechanism, and skid shoes with adjustable height.
Snow buckets have a see-through tall-back design which enables high-capacity without sacrificing visibility. The vertical reinforcements inside the bucket create strength and rigidity without compromising volume, and the wear guards on the bucket bottom extend the life of the bucket.
Specifications & Details
| Snow Buckets (Includes Bolt On Edge) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Duty Class | Width | Weight | Height | Depth | Capactiy | Holes | Hole Spacing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard Capactiy | 84" | 733 lb | 29.9" | 42" | 1.47 yd | 9 | 9.75" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 96" | 795 lb | 29.9" | 42" | 1.70 yd | 16 | 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 101" | 820 lb | 29.9" | 42" | 1.82 yd | 17 | 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| High Capacity | 96" | 999 lb | 37.6" | 46.2" | 2.36 yd | 16 | 6" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 101" | 1020 lb | 37.6" | 46.2" | 2.52 yd | 17 | 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 108" | 1078 lb | 37.6" | 46.2" | 2.67 yd | 18 | 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Snow Buckets - Standard Capacity Features
- See through tall-back design enable high-capacity without sacrificing visibility
- Veritcal reinforcements inside the bucket create strength and rigidity without compromising volume
- Wear guards on the bucket bottom extend life
Snow Buckets - High Capacity Features
- Taller back and larger side plates, for increased capacity without increasing width
- 108° option moves nearly 3 yards of snow in a single scoop

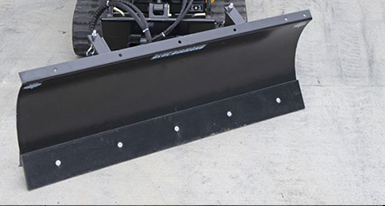

Snow Blades Features
- Replaceable bolt-on liner
- Optional rubber edge
- Skid shoes with adjustable height
- Reinforced seven-gauge steel blade
- Spring-loaded trip mechanism

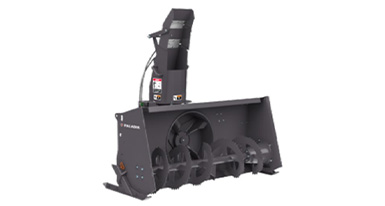

Snow Blowers - Standard Flow Features
- Two-stage hydraulic blower throws snow up to 45'
- Electro/hydraulic, poly-lined chute and deflector
- Reinforced wrapper and adjustable skid shoes
Snow Blowers - High Flow Features
- Same features as the Standard Flow Features
- More power
- Taller hood
- Larger auger size
- Larger fan diameter
Snow Blowers - High Flow, High Torque Features
- Same features as the High Flow
- Additional motor on auger, which adds additional torque to deal with heavier, stickier, harder snow
What are snow buckets used for?
Snow buckets are designed for efficiently scooping, lifting, and moving large quantities of snow. They are ideal for clearing driveways, parking lots, sidewalks, and other areas where snow accumulates.
What are snow blades used for?
Snow blades are used for pushing snow off surfaces such as roads, driveways, and parking lots. They are designed to efficiently plow and direct snow to the side, making them ideal for snow removal and clearing large areas.
How do I choose between a snow bucket and a snow blade?
Choose a snow bucket if you need to lift and transport snow. Opt for a snow blade if your primary goal is to push and plow snow off surfaces. Consider the specific requirements of your snow removal tasks when making your decision.
Can I use snow buckets and snow blades on any articulated wheel loader?
Most articulated wheel loaders can accommodate these attachments, but it's important to verify compatibility with your specific model. Check the manufacturer's guidelines to ensure proper fit and function.
How do I attach and detach snow buckets and snow blades to my articulated wheel loader?
Both attachments typically use a quick-attach system for easy connection and disconnection. Follow the manufacturer's instructions for securely attaching and detaching the snow bucket or snow blade to your articulated wheel loader.
What maintenance is required for an articulated wheel loader?
Regular maintenance includes inspecting the attachment for wear and damage, checking for secure connections, and ensuring all bolts and pins are tight. For snow blades, check the cutting edge for wear and replace it as needed. Keep the attachments clean and free of debris.
Are there any safety considerations when using snow buckets and snow blades?
Yes, safety is crucial. Always wear appropriate personal protective equipment (PPE), such as a hard hat, safety glasses, and warm clothing. Be mindful of your surroundings, including pedestrians and obstacles, to avoid accidents and injuries. Follow safe operating procedures as outlined by the manufacturer.
How do snow buckets and snow blades improve efficiency?
Snow buckets allow you to quickly scoop and transport snow, reducing the time and effort required for snow removal. Snow blades enable you to efficiently push and clear large areas of snow, making the snow removal process faster and more effective.
Can snow buckets and snow blades handle heavy, wet snow?
Yes, both attachments are designed to handle various types of snow, including heavy, wet snow. Ensure that your articulated wheel loader has sufficient power and capacity to manage the load.
What is the cost of snow buckets and snow blades for an articulated wheel loader?
The cost varies based on size, capacity, and brand. Snow buckets typically range from a few hundred to several thousand dollars, while snow blades can range from a few hundred to over a thousand dollars, depending on the specifications and features.
