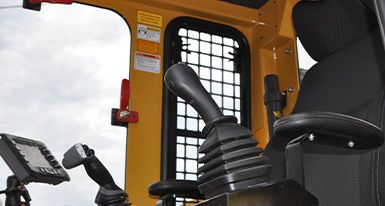

For the ultimate in compact, powerful mulchers, look no further than Rayco’s C200. Its narrow profile makes the C200 the ultimate for ROW clearing on narrow lines as well as for use in larger-scale clearing projects. The operator cabin is comfortable and spacious, with a high-backed, heated seat with air-ride suspension. The rear fan is auto-reversing, reducing maintenance time.
Specifications & Details
| GENERAL |
C200RA US (METRIC) |
C200SA US (METRIC) |
| Weight of Carrier with Winch & FM200-6DR Mulcher |
20,760 lb (9,416.6 kg) | 21,760 lb (9,870 kg) |
| Length of Carrier with Winch & FM200-6DR Mulcher |
19'1"(5.8 m) | |
| Height | 8'6"(2.7 m) | |
| Width | 7'6 ”(2.3 m) | 7'5" (2.3 m) |
| Engine | 188-HP (140.2 kW) Isuzu 5.2 L T4F | |
| Fuel Type | Diesel | |
| Fuel Capacity | 64 gallon (242 L) | |
| Hydraulic Tank | 20 gallon (75.7 L) | |
| High Flow Hydrostatic | 66 gpm • 5,800 psi (250 L/min • 400 bar) | |
| Ground Pressure with FM200-6DR Mulcher | 5.71 psi (39.4 kPa) | |

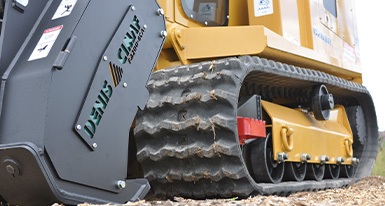

| Track Width | 20" (500 mm) | 18" (450 mm) |
| Travel Speed High | 4.8 mph (7.7 km/h) | |
| Travel Speed Low | 2.7 mph (4.3 km/h) | |
| Cab Certifications | ROPS ISO 8082 • FOPS ISO 8083 • OPS ISO 8084/WCB G603 | |
| PREDATOR MULCHER HEAD & DENIS CIMAF MULCHER HEAD | ||
| Standard Predator Mulcher Head Model |
FM200-6DR | |
| Weight | 3,200 lb (1,451.5 kg) | |
| Overall Width | 7'2" (219 cm) | |
| Rotor Diameter | 17 ”(43 cm) | |
| Rotor Speed | 2,052 RPM | |
| Cutting Width | 5'8 ”(1.7 m) | |
| Ground Pressure | 5.7 psi | |
| Max Mowing Height | 8'7 ”(2.6 m) | |
| Cutter Teeth | 36 Carbide Tipped | |
| Optional Denis Cimaf Model | FM200-6CA | |
| Weight | 3,075 lb (1,395 kg) | |
| Overall Width | 7'3" (2.2 m) | |
| Rotor Diameter | 18 ”(46 cm) | |
| Rotor Speed | 2,500 RPM | |
| Ground Pressure | 5.3 psi (36.6 kPa) | |
| Cutting Width | 6'2 ”(2 m) | |
| Max Mowing Height | 8'7 ”(2.6 m) | |
| Cutter Teeth | 27 Planer Knives |
What size and type of forestry mulcher do I need for my job?
This depends on the size of the trees and vegetation you need to clear, as well as the terrain and intended use (e.g., land clearing, maintenance, etc.).
What maintenance is required for a forestry mulcher?
Regular maintenance includes sharpening teeth, checking hydraulic systems, and inspecting wear parts like belts and bearings.
What are the typical operating costs associated with owning a forestry mulcher?
Operating costs include fuel consumption, maintenance, and occasional replacement of wear parts like teeth and cutting blades.
Can the mulcher be used on different types of terrain?
Forestry mulchers are designed to handle various terrains, but it's essential to ensure the specific model is suitable for your project's conditions.
Is training or support available for operating the forestry mulcher?
All of our dealers offer training on operating and maintaining the mulcher at startup. It's beneficial to inquire about available training options.
Can I see the mulcher in operation or get a demonstration before purchasing?
We often provide demonstrations to allow potential buyers to see the mulcher in action. This helps in understanding its capabilities and performance firsthand. If you would like a demonstration, be sure to find the local dealer in your area by clicking here.
