Augers Overview
Auger Attachments give you access to smaller spaces without sacrificing power. Whether you are drilling into hard permafrost or soft desert sand there is an auger that's right for you.
Specifications & Details
Medium Duty Augers | ||||||||||||||||||||||||||||
Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
HDF | 6" | 48" | 42 lb | These augers are made for light to moderate ground conditions. They feature a fabricated boring head with hardened bolt-on gage (outside) and wisdom (inside) teeth, as well as hardened fishtail point. | ||||||||||||||||||||||||
9" | 48" | 86 lb | ||||||||||||||||||||||||||
12" | 48" | 120 lb | ||||||||||||||||||||||||||
18" | 48" | 160 lb | ||||||||||||||||||||||||||
24" | 48" | 278 lb | ||||||||||||||||||||||||||
30" | 48" | 325 lb | ||||||||||||||||||||||||||
36" | 48" | 443 lb | ||||||||||||||||||||||||||
Heavy Duty Augers - HDC | ||||||||||||||||||||||||||||
Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
HDC | 6" | 48" | 45 lb | These augers are made for difficult ground conditions, compacted soils, heavy clay, frozen ground and fracturable rock. | ||||||||||||||||||||||||
9" | 48" | 98 lb | ||||||||||||||||||||||||||
12" | 48" | 128 lb | ||||||||||||||||||||||||||
18" | 48" | 204 lb | ||||||||||||||||||||||||||
24" | 48" | 272 lb | ||||||||||||||||||||||||||
30" | 48" | 312 lb | ||||||||||||||||||||||||||
36" | 48" | 430 lb | ||||||||||||||||||||||||||
42" | 48" | 460 lb | ||||||||||||||||||||||||||
48" | 48" | 550 lb | ||||||||||||||||||||||||||
Rock Augers | ||||||||||||||||||||||||||||
Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
ROCK | 6" | 48" | 82 lb | These augers are made for solid, fracturable rock, frozen ground, asplalt, and compact soils. | ||||||||||||||||||||||||
9" | 48" | 110 lb | ||||||||||||||||||||||||||
12" | 48" | 137 lb | ||||||||||||||||||||||||||
18" | 48" | 192 lb | ||||||||||||||||||||||||||
24" | 48" | 285 lb | ||||||||||||||||||||||||||
30" | 48" | 315 lb | ||||||||||||||||||||||||||
36" | 48" | 414 lb | ||||||||||||||||||||||||||
Heavy Duty Augers - HTF | ||||||||||||||||||||||||||||
Style | Width | Length | Weight | Ground Conditions | ||||||||||||||||||||||||
HTF | 18" | 48" | 144 lb | These augers are made for tree and shrub planting. | ||||||||||||||||||||||||
24" | 48" | 198 lb | ||||||||||||||||||||||||||
30" | 48" | 264 lb | ||||||||||||||||||||||||||
36" | 48" | 349 lb | ||||||||||||||||||||||||||
42" | 48" | 330 lb | ||||||||||||||||||||||||||
48" | 48" | 428 lb | ||||||||||||||||||||||||||
|
Augers - Medium Duty HDF Style Features
- Fabricated boring head with hardened bolt-on gage (outside) and wisdom (inside) teeth, as well as a hardened fishtail point.
- Equipped with heavy-duty double flighting.
Augers - Heavy Duty HDC Style
- Heavy duty cast steel boring head, hardened drive-in gauge (outside) and wisdom (inside) teeth.
- Equipped with hardened fishtail point and heavy-duty, double flighting.
Rock Augers - Bullet Tooth
- Bullet-style teeth and a fabricated boring head, as well as heavy-duty single flighting.
- 2" hexagon collar only and is available in 4' length.
- .75" thick bottom flight and a hardface outer edge.
Augers - Heavy Duty HTF Style
- 2" diameter design with a fabricated boring head and hardened bolt on gauge (outside) and wisdom (inside) teeth
- Equipped with hardened fishtail point and heavy-duty double flighting.

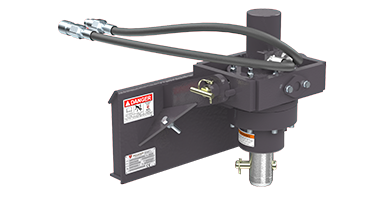

Auger Drive Features
- Maximum output torque 1,998 lb-ft
- 2 9/16" round output shaft
- Dual pivot with lockout pin to single pivot
- Maximum 3,000 psi
- 30° maximum auger diameter
What size auger bit do I need for my articulated wheel loader?
The size of the auger bit you need depends on the type of job you're performing and the size of the holes required. Common sizes range from 6 inches to 36 inches in diameter.
How do I choose the right auger drive for my articulated wheel loader?
Selecting the right auger drive involves considering the hydraulic flow and pressure specifications of your articulated wheel loader, the type of soil or material you'll be drilling into, and the size of the auger bits you'll be using.
Can I use an auger attachment from another brand with my articulated wheel loader?
Yes, many auger attachments are designed to be compatible with various brands of articulated wheel loaders, but it's important to verify compatibility based on mounting systems and hydraulic requirements.
How do I maintain my auger and auger drive?
Regular maintenance includes checking hydraulic hoses and connections, greasing pivot points, inspecting the auger bit for wear or damage, and ensuring that the drive unit is clean and free of debris.
What types of soil or materials can augers for articulated wheel loaders handle?
Augers for articulated wheel loaders can handle a wide range of materials, including dirt, clay, sand, gravel, and even some types of rock, depending on the auger bit and drive's power.
How deep can an auger for a articulated wheel loader dig?
The depth an auger can reach depends on the length of the auger bit and any extensions used. Standard auger bits can typically dig up to 4 feet deep, but extensions can allow for deeper holes.
What safety precautions should I take when using an auger attachment?
Safety precautions include wearing appropriate personal protective equipment, ensuring the area is clear of underground utilities, operating at safe speeds, and following the manufacturer's guidelines for use and maintenance.
How do I attach and detach the auger drive on my articulated wheel loader?
Attaching and detaching the auger drive involves aligning the quick attach mounting plate with the attachment, securing it in place with locking pins or levers, and connecting the hydraulic hoses.
Can I rent an auger attachment for my articulated wheel loader?
Yes, many equipment rental companies offer auger attachments for articulated wheel loaders, providing a cost-effective solution for short-term or infrequent projects.
What are the benefits of using an auger attachment with a articulated wheel loader?
Using an auger attachment with a articulated wheel loader increases efficiency and productivity in drilling operations, allows for precise hole placement, reduces manual labor, and is suitable for a variety of applications such as landscaping, construction, and agricultural projects.
