Rayco’s C120 Forestry Mulcher is the answer if you’re looking for a purpose-built mulcher but need the versatility of rubber tracks. It rides on a 18-inch (450 mm) wide steel-imbedded rubber track. A reliable, 120-HP (89.4-kW) Cummins diesel engine supplies power, while Rayco’s exclusive Super Flow, closed-loop hydrostatic system delivers mulching power not found in ordinary Compact Track Loaders.

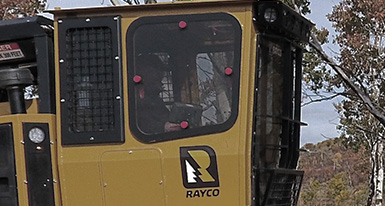

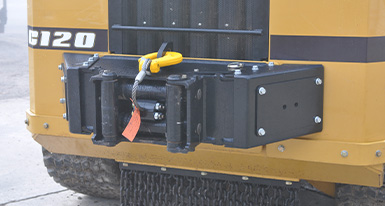

Purpose-built for mulching, the C120 features a heavy-duty rear door, hydraulic winch, and Rayco’s exclusive elevated cooling design, which places engine radiators in both the rear of the engine compartment and in the limbriser for maximum cooling performance in the harshest climates. The cab is certified ROPS/OPS/FOPS with escape hatches in the roof and rear window.
Specifications & Details
| GENERAL |
120RA |
120SA |
| Weight of Carrier with Mulcher | 16,725 lb (7,586 kg) | 17,660 lb (7,983 kg) |
| Length of Carrier with Mulcher | 17' (5.2 m) | |
| Height | 8'6" (2.6 m) | |
| Width | 7' (2.1 m) | 7' (2.1 m) |
| Engine | 120-hp (88 kW) Cummins QSF 3.8L, T4F | |
| Fuel Type | Diesel | |
| Fuel Capacity (tank) | 45 gallons (170.3 L) | |
| Hydraulic Tank | 14 gallons (53 L) | |
| Track Width | 18" (450mm) | 20" (500 mm) |
| Super Flow Hydrostatic Cutter Head Circuit | 57 gpm (216 L/min)@ 5,800 psi | |
| Attachment Flow High | 40 gpm (151 L/min)@ 3,770 psi | |
| Attachment Flow Low | 20 gpm (76 L/min)@ 3,770 psi | |
| Travel Speed High | 4.7 mph (7.6 km/h) | |
| Travel Speed Low | 2.6 mph (4.2 km/h) | |
| Fast Track (optional) | 7 mph (11.3 km/h) | N/A |
| Cab Certifications | ROPS ISO 8082 • FOPS ISO 8083 • OPS ISO 8084 | |
| Mulcher Head Model | Predator Mulching Head | Denis Cimaf Mulching Head |
| Weight | 3,465 lb (1,571.7 kg) | 3,075 lb (1,395 kg) |
| Overall Width | 7' (2.1 m) | 7'3" (2.2 m) |
| Rotor Diameter | 16.75" (42.55 cm) | 18" (46 cm) |
| Rotor Speed | 2,200 RPM | 2,500 RPM |
| Cutting Width | 6' (1.8 m) | 6'2" (1.9 cm) |
| Max Mowing Height | 7'5" (2.3 m) | |
| Cutter Teeth | 36 Carbide Tipped Reversible | 27 Sharpenable Planar |
| Specifications may vary with equipment options |
What size and type of forestry mulcher do I need for my job?
This depends on the size of the trees and vegetation you need to clear, as well as the terrain and intended use (e.g., land clearing, maintenance, etc.).
What maintenance is required for a forestry mulcher?
Regular maintenance includes sharpening teeth, checking hydraulic systems, and inspecting wear parts like belts and bearings.
What are the typical operating costs associated with owning a forestry mulcher?
Operating costs include fuel consumption, maintenance, and occasional replacement of wear parts like teeth and cutting blades.
Can the mulcher be used on different types of terrain?
Forestry mulchers are designed to handle various terrains, but it's essential to ensure the specific model is suitable for your project's conditions.
Is training or support available for operating the forestry mulcher?
All of our dealers offer training on operating and maintaining the mulcher at startup. It's beneficial to inquire about available training options.
Can I see the mulcher in operation or get a demonstration before purchasing?
We often provide demonstrations to allow potential buyers to see the mulcher in action. This helps in understanding its capabilities and performance firsthand. If you would like a demonstration, be sure to find the local dealer in your area by clicking here.
