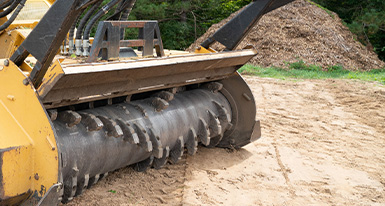

Rayco’s powerful new T415 forestry machine allows customers to change between a Predator forestry mower/mulcher head and a Hydra-Stumper stump cutter attachment for the ultimate in high production versatility. For mowing/mulching applications, the Predator mulcher head has a 7'7"” (2.3 m) cutting width and is powered by a pair of variable displacement drive motors. The Hydra-Stumper head muscles through stumps with its 48” (1.2 m) diameter x 3” (7.6 cm) thick cutter wheel equipped with 56 Monster Tooth™ cutter tools. Powered by a 415-hp (310-kW) CAT C9.3B Diesel Tier 4 Final engine, the T415 boasts a closed-loop Hydrostatic system to power the mulcher or stump cutter heads, sending 140 gallons per minute (530L/min) to the attachment drive motor(s). The hydraulic output is power-optimized to match the engine’s power curve, keeping the mulcher/stumper RPM constant even under load for a finer mulched product with fewer passes.
Rayco’s exclusive elevated cooling design places engine radiators in both the rear of the engine compartment and in the limb riser for maximum cooling in even the harshest environments. Debris screens trap airborne chaff before it can plug radiator fins. Reversing fans clear debris screens on-command, extending service intervals. Other key features include Rayco’s exclusive track tensioning system with monitor, which alerts the operator to over-tension situations; hydraulic tilt cab to access pumps and other components easily; and the 35,000-lb (15,875-kg) hydraulic rear winch. As an option, the T415 is also available with a DENIS CIMAF mulching head.
Specifications & Details
| GENERAL | US | METRIC |
| Weight of Carrier with Winch & FM415-8R Mulcher |
42,920 lb | 19,468 kg |
| Length of Carrier with Winch & FM415-8R Mulcher |
23'6 ” | 7.2 m |
| Length of Carrier with Winch & CB415 Hydra-Stumper |
24'4 ” | 7.4 m |
| Height | 10'7 ” | 3.2 m |
| Width of Carrier | 9'4 ” | 2.8 m |
| Ground Clearance | 22 ” at belly | 56 cm at belly |
| Engine | 415-hp (310 kW) CAT C9.3B, T4F | |
| Fuel Type | Diesel | |
| Fuel Capacity | 110 gallon | 416 L |
| Hydraulic Tank | 95 gallon | 360 L |
| High Flow Hydrostatic | 140 gpm • 5,070 psi | 530 L/min • 34,956 kPa |
| Track Width | Standard: Double Grouser, Steel - 28 ” (711 mm) Optional: Single Grouser, Steel - 28 ” (700 mm) or 24 ” (600 mm) |
|
| Travel Speed High | 3.7 mph | 5.95 km/h |
| Travel Speed Low | 2.0 mph | 3.22 km/h |
| Cab Certifications | ROPS ISO 8082 • FOPS ISO 8083 • OPS ISO 8084/WCB G603 | |
| PREDATOR MULCHER HEAD | ||
| Mulcher Head Model | FM415-8R | FM415-8R |
| Weight | 7,200 lb | 3,266 kg |
| Overall Width | 9'4 ” | 2.9 m |
| Rotor Diameter | 27 ” | 68.5 cm |
| Ground Pressure | 5.74 psi | 39.6 kPa |
| Cutting Width | 7'7 ” | 2.3 m |
| Max Mowing Height | 6'2 ” | 2 m |
| Cutter Teeth | 45 Rayco Single Bolt Teeth + 4 Rayco Single Bolt Extra Carbide Teeth | |
| HYDRA-STUMPER CUTTER HEAD | ||
| Hydra-Stumper Model | CB415 | CB415 |
| Weight | 6,500 lb | 2,950 kg |
| Wheel Diameter | 48 ” | 1.2 m |
| Wheel Thickness | 3 ” | 7.6 m |
| Cutter Wheel RPM | 705 RPM | 705 RPM |
| Drive Belt | Gates Polychain® GT | |
| Ground Pressure with Winch and Stumper Head | 5.68 psi | 39.2 kPa |
| Cutter Teeth | 56 Monster Tooth™ | |
| Below Ground Cutting Level | 3'1 ” | 94 cm |
| Above Ground Cutting Level | 8 ’10 ” | 2.7 m |
| Cutting Width | 9 ’ | 2.74 m |
What size and type of forestry mulcher do I need for my job?
This depends on the size of the trees and vegetation you need to clear, as well as the terrain and intended use (e.g., land clearing, maintenance, etc.).
What maintenance is required for a forestry mulcher?
Regular maintenance includes sharpening teeth, checking hydraulic systems, and inspecting wear parts like belts and bearings.
What are the typical operating costs associated with owning a forestry mulcher?
Operating costs include fuel consumption, maintenance, and occasional replacement of wear parts like teeth and cutting blades.
Can the mulcher be used on different types of terrain?
Forestry mulchers are designed to handle various terrains, but it's essential to ensure the specific model is suitable for your project's conditions.
Is training or support available for operating the forestry mulcher?
All of our dealers offer training on operating and maintaining the mulcher at startup. It's beneficial to inquire about available training options.
Can I see the mulcher in operation or get a demonstration before purchasing?
We often provide demonstrations to allow potential buyers to see the mulcher in action. This helps in understanding its capabilities and performance firsthand. If you would like a demonstration, be sure to find the local dealer in your area by clicking here.
