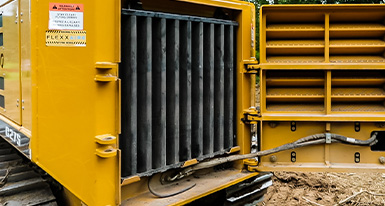

The C275 is a mid-sized forestry mulcher that delivers 275 hp (205 kW) in a compact, low ground pressure package. This mulching machine is suited for clearing small trees, underbrush, and a variety of unwanted vegetation across a wide range of environments. The heavy-duty steel undercarriage and powerful final drives allow operators to tackle difficult terrain with confidence. Rayco’s exclusive elevated cooling design keeps engine and hydraulic temperatures within their limits in the harshest of environments. To minimize maintenance, a reversing fan can be activated from the cab to clear the limbriser debris screens. This helps to extend service intervals even when operating in hot, debris-filled environments.

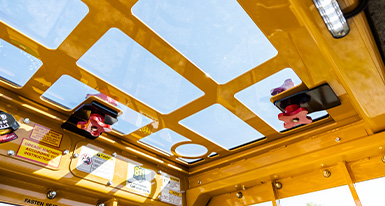

When manual cleaning of the debris screens is necessary, they are easily removable and the rear door opens to allow unrestricted access to the debris screen and engine radiator. The cabs are climate controlled and sealed from dust and debris to maintain operator comfort. Operators appreciate the high-backed, heated seat with adjustable armrests and air-ride suspension. For safety, the cab is certified to meet ROPS, FOPS, and OPS specifications and is equipped with a roof-top escape hatch. High-output LED work lights and a backup camera enhances rearward visibility.
Specifications & Details
| GENERAL | US | METRIC |
| Overall Weight | 27,460 lb | 12,445 kg |
| Overall Length | 21'2" | 6.5 m |
| Height | 10' | 3 m |
| Width | 8' | 2.4 m |
| Engine | 275-hp (205 kW) CAT C7.1, T4F | |
| Fuel Type | Diesel | |
| Fuel Capacity | 80 gallon | 303 L |
| Hydraulic Tank | 25 gallon | 94 L |
| Track Width | Standard: Single Grouser, Steel - 24" (600 mm) Optional: Single Grouser, Steel - 20" (500 mm) or 28" (700 mm) |
|
| High Flow Hydrostatic | 102 gpm • 6,090 psi | 386 L/min • 420 bar |
| Travel Speed High | 3.6 mph | 6 km/h |
| Travel Speed Low | 1.8 mph | 3 km/h |
| Cab Certifications | ROPS ISO 8082-1 • FOPS ISO 8083 • OPS ISO 8084/J1356 | |
| PREDATOR MULCHER HEAD | ||
| Mulcher Head Model | FM275-7R | |
| Weight | 4,295 lb | 1,948 kg |
| Weight with Carrier and Winch | 27,460 lb | 12,455 kg |
| Length with Carrier and Winch | 21'2" | 6.5 m |
| Overall Width | 7'9" | 2.4 m |
| Rotor Diameter | 20" | 50 cm |
| Rotor Speed | 2,050 RPM | |
| Ground Pressure | 5 PSI | 34.7 kPa |
| Cutting Width | 6'6" | 2 m |
| Max Mowing Height | 3'10" | 1.2 m |
| Cutter Teeth | 42 Carbide Tipped | |
| HYDRA-STUMPER CUTTER HEAD | ||
| Hydra-Stumper Model | CB275HS | |
| Weight | 4,400 lb | 1,995 kg |
| Weight with Carrier and Winch | 27,560 lb | 12,501 kg |
| Length with Carrier and Winch | 23' | 7 m |
| Wheel Diameter | 40" | 102 cm |
| Wheel Thickness | 3" | 7.6 cm |
| Drive Belt | Gates Polychain® GT | |
| Cutter Wheel RPM | 650 RPM | |
| Ground Pressure | 5 PSI | 34.83 kPa |
| Cutter Teeth | 36 Monster ToothTM | |
| Below Ground Cutting Level | 3'4" | 1 m |
| Above Ground Cutting Level | 5' | 1.5 m |
| Cutting Width | 9' | 2.7 m |
What size and type of forestry mulcher do I need for my job?
This depends on the size of the trees and vegetation you need to clear, as well as the terrain and intended use (e.g., land clearing, maintenance, etc.).
What maintenance is required for a forestry mulcher?
Regular maintenance includes sharpening teeth, checking hydraulic systems, and inspecting wear parts like belts and bearings.
What are the typical operating costs associated with owning a forestry mulcher?
Operating costs include fuel consumption, maintenance, and occasional replacement of wear parts like teeth and cutting blades.
Can the mulcher be used on different types of terrain?
Forestry mulchers are designed to handle various terrains, but it's essential to ensure the specific model is suitable for your project's conditions.
Is training or support available for operating the forestry mulcher?
All of our dealers offer training on operating and maintaining the mulcher at startup. It's beneficial to inquire about available training options.
Can I see the mulcher in operation or get a demonstration before purchasing?
We often provide demonstrations to allow potential buyers to see the mulcher in action. This helps in understanding its capabilities and performance firsthand. If you would like a demonstration, be sure to find the local dealer in your area by clicking here.
